Coil Conversions

One of the most popular choices for a touring or work vehicle is the Toyota Landcruiser due to its proven reliability, simplicity and ruggedness.

The 70 series Landcruiser is a common choice thanks to plenty of practical storage and a large payload when setup correctly. One of the biggest complaints from 70 series owners is the lack of ride comfort.

Wagon variants of the Toyota Landcruiser such as the 80, 105 & 200 series are also popular touring vehicles due to their comfortable coil sprung suspension and off-road ability. The biggest downfall of these wagons is the lack of storage space and available payload.

Standard 3900kg Package
Extras & Upgrades
JMACX 4495 Super Chassis

Best Of Both Worlds

When fitted with a coil conversion the 70 series Landcruiser is the perfect combination. It becomes a vehicle with reliable running gear, plenty of storage, a large payload, corrected wheel track & now the comfort of coil sprung rear suspension.

This modification can be installed on the whole range of 70 series Landcruiser’s from 2007 onwards including the 76 series wagon, 78 series troopy, 79 series single cab & 79 series dual cab.

Standard 3900KG Package

Our entry level full package is the 3900kg GVM package, this is the starting point for all coil conversion packages and you can upgrade the package if required. The coil conversions are fitted for a wide range of applications so the packages are customisable to suit your needs.

Basic coil conversion kit
3900kg GVM upgrade
2 inch suspension lift
33 inch tyres (legally fitted)
Jmacx Pro series shocks
Front & rear coil springs
High pressure airbag kit
Castor correction bushes
Billet sway bar spacers
Upgraded brake booster
Torqit stainless exhaust
Workshop consumables
Installation & engineering

Optional Extras & Upgrades

Below you will find a list of optional extras and upgrades available for coil conversions.

4200kg or 4495kg GVM
3 or 4 inch suspension lift
35 inch tyres (legally fitted)
Jmacx Alpha remote res shocks
Jmacx Alpha shocks & electric control
Jmacx billet radius arms
Heavy duty steering damper
Braided brake line kit
Heavy duty clutch upgrade
Brown Davis 185L fuel tank

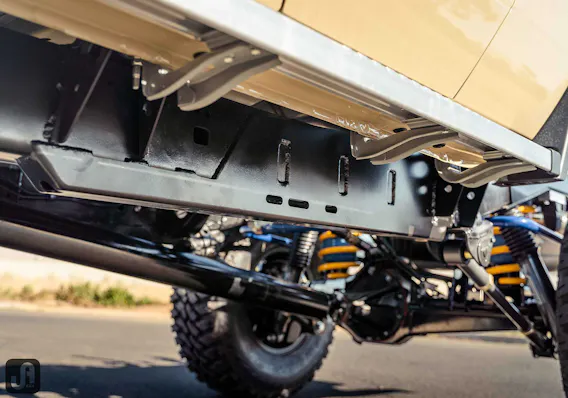

300mm chassis extension
Custom colour coding

JMACX 4495 SUPER CHASSIS

The 4495 Super Chassis from Jmacx Offroad Solutions incorporates a coil conversion, chassis extension, GVM upgrade and more into a single upgrade package. To learn more about the Super Chassis package, click the link below.

Learn More

Learn More

Frequently Asked Questions

What is a coil conversion?

A coil conversion is the process of removing the standard leaf spring suspension system from a vehicle and converting it to a coil spring suspension setup.

What is the advantage of coil springs?

One of the biggest advantages of coil springs is ride comfort, coil springs are known for offering a plush ride whilst leaf springs traditionally ride rougher. Coil spring vehicles often handle nicer onroad and also perform better offroad due to increased ground clearance & wheel travel.

How much does a coil conversion cost?

Our coil conversions aren’t a one size fits all modification and therefore there is not a fixed price for the conversion. There are a few different ways to do the coil conversion and there’s a lot of options for different parts to be included. Generally no two coil conversions will be the same price due to each individual kit being tailored to the needs and preferences of the customer. The approximate pricing for a full coil conversion package is around $30,000 give or take (including parts, installation & engineering).

Is this conversion 100% road legal?

We can engineer the coil conversion pre rego on brand new vehicles or post rego on already registered vehicles. Providing the vehicle gets engineered and all of the components within the kit remain on the vehicle once engineering is done then the modification will be 100% road legal.

Is my car covered by insurance with a coil conversion?

All of our GVM packages and coil conversions can be engineered, once engineered they are completely road legal. Generally, if a modification is road legal and engineered your insurance company won’t have any issues covering your vehicle and the modifications. We do always recommend double checking with your insurance company just to be sure.

Can I find spare parts in the middle of nowhere?

The Jmacx diff housing retains the use of a factory Toyota diff centre, diff lock, driveshaft, brakes, seals, bearings and hubs. Factory bushes are also used and the coil kit uses factory length suspension arms. The use of factory fitted items makes it much easier & quicker to source spare or replacement parts.

Does the replacement diff housing correct my track?

Yes, the Jmacx diff housing is a 6mm fabricated housing and is 100mm wider than the standard diff housing. This corrects the wheel track to match the width of the front axle. The Jmacx diff is also much stronger, standard diff housings are only rated to 2300kg, whereas the Jmacx diff housing is tested to 3000kg (the legal axle load rating will depend on the specific GVM kit).

What size tyres can I fit with my coil conversion?

There is the option to fit 33 or 35 inch tyres to a 70 series with a coil conversion and this is based on suspension lift. A 2 inch lift allows for the fitment of 33 inch tyres and 3 or 4 inch lifts allow for the fitment of either 33’s or 35’s.

How long does it take to install a coil conversion?

To install a basic coil conversion, we will generally need your car for approximately one week. When the kits become more complex with alterations or optional extras this does add time to the installation process and we may need it for longer.

Do I need load rated rims and tyres with a GVM upgrade?

Yes, every vehicle requires load rated rims & tyres regardless of whether or not the GVM has been upgraded. To work out the required load rating for your rims & tyres you can simply divide the vehicles highest axle rating by half, usually this will be the rear axle. For example a 2020 model Landcruiser 79 series dual cab comes from Toyota with a 3300kg GVM, the front axle rating is 1480kg and the rear axle rating is 2300kg which means the minimum required load rating for rims & tyres on this vehicle is 1150kg each (2300kg divided by 2 = 1150kg).

Does fitting a GVM upgrade reduce my towing capacity?

Technically not, a GVM upgrade should never decrease your towing capacity however it may reduce the amount you can legally tow. Most GVM upgrades will only replace suspension components which allows your GVM to be increased but makes no change to your legal combined weight of GVM and towing capacity (often referred to as GCM). Jmacx coil conversion packages upgrade a lot more components and undergo extensive testing which allows you to legally utilise your full towing capacity while loaded at your full GVM.

Can we do a coil conversion on other vehicles?

Currently no, at this stage we only offer coil conversions for the 70 series Landcruiser range of vehicles. These kits have been developed specifically for the V8 models from 2007 onwards and do not fit older models.

Check Out Our Builds

Below you can check out some of our builds which include a coil conversion.

For more custom 4×4 inspiration, visit our main gallery.

White 79 Series Toyota Landcruiser — Facelift 79 Series Coil Conversion

Yuehao's 76 Series — Yuehao’s 76 Series

76 series Toyota Landcruiser built for outback touring — 76 Series Touring Machine

Confused or keen to find out more?

We get it! There’s a lot to take in and you potentially now have more questions than answers.

That’s okay, our sales team will be more than happy to talk you through everything about coil conversions and help find the best option for you. We can put together a package and provide a personalised quote to best suit your individual application. Get the ball rolling by filling out our contact form.
